S&S Header

Pictures and Information from Terry Vincent


Information

  • S&S Headers
  • 4-into-1 with a racing style merge collector
  • 1-5/8" 16 gauge steel primaries
  • 2" collector
  • 5/16" CNC plasma cut flanges
  • $275.00 + shipping (uncoated)
  • The header can be coated at the time of order (using HPC, JetHot, or Performance Coatings) for an additional $145.00
  • Part # 5420 with PM158 fits 91-94 Sentra SE-R and 95-98 200SX SE-R

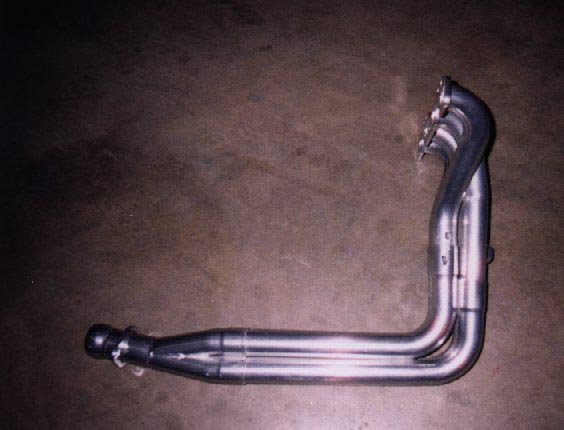

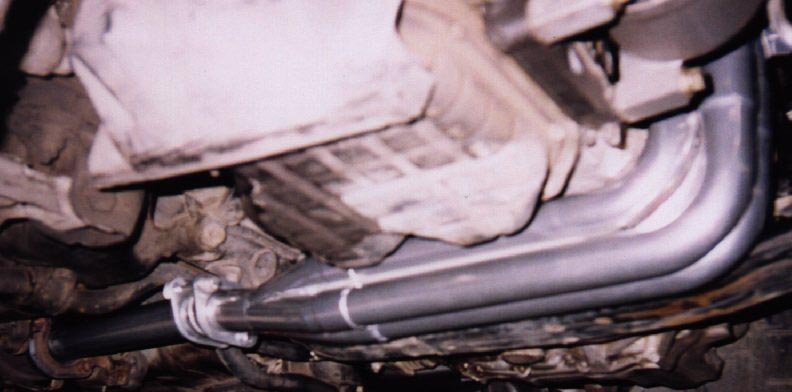

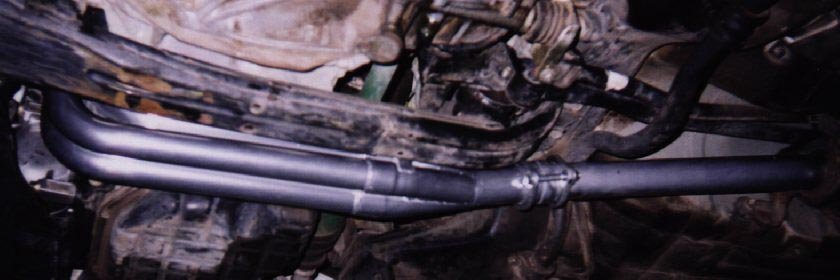

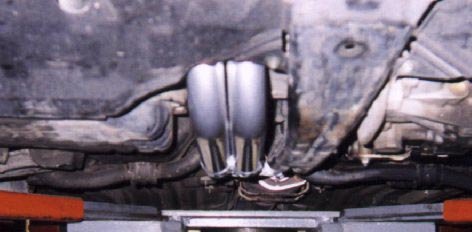

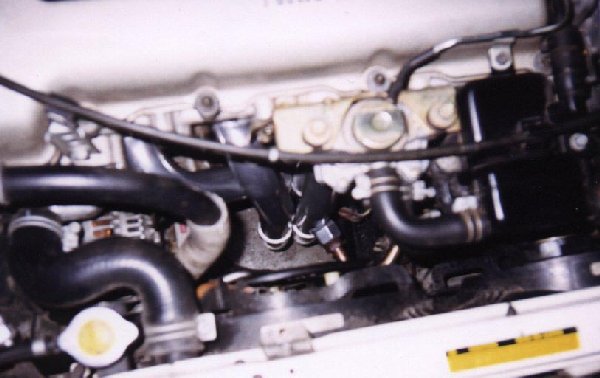

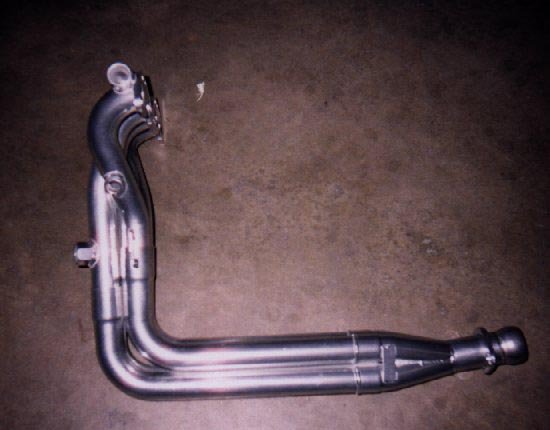

Pictures






Dyno Results

The increase in output was not huge, but definitely noticeable. The designer feels this header would help greatly in a car with upgraded cams.

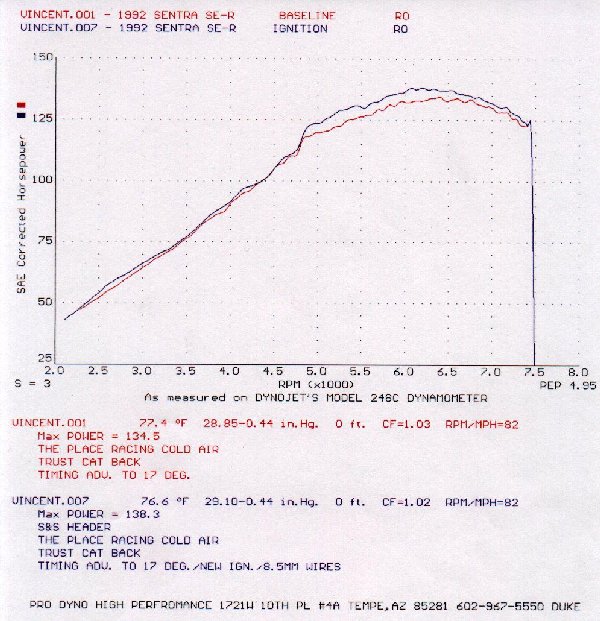

Horsepower

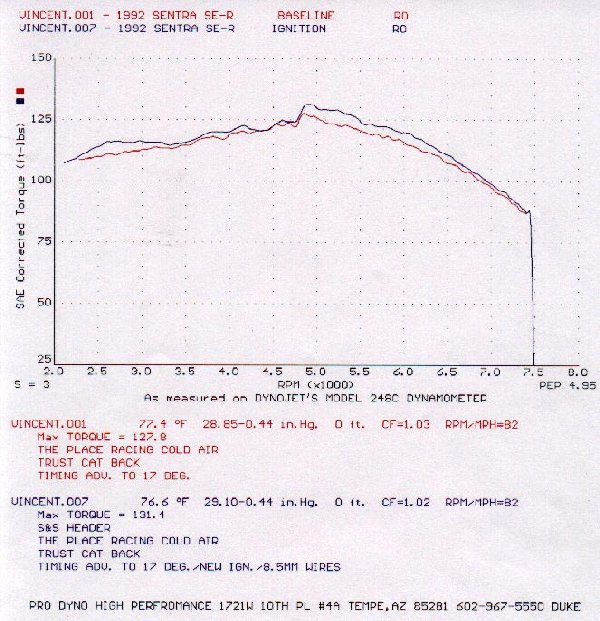

Torque
